Space Saving Wheel Type Flow Rack System In Yellow Color For Hardware Industry

  • 1
  • 2

Brand Name : SIMPLY

Model Number : SII-DR145

Certification : SGS

Place of Origin : China

MOQ : 5 sets

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 6000 ton per year

Delivery Time : 30 working days

Packaging Details : Export standard carton, wooden or steel pallet is available.

Material : Steel Q235B

Color : Blue, Yellow, Orange, Red, Grey, etc.

Surface Treatment : Powder Coating

Mobility : Fixed

Usage : Supermarket, Shipping Mall, Car Spare Parts Warehouse, etc.

Depth : Custom

Width : Custom

Logo : Custom

OEM : Yes

Components : Frame, Beam, Roller, Damper

Advantages : Space Saving

Shipment : Ocean Sea Shipment

Contact Now

Wheel Type Flow Rack System in Yellow Color for Hardware Industry

It is a racking system consisting of columns, beams, rollers and dampers. It is a space-saving and compact system. It is mainly made up of heavy-duty shelves or medium-sized shelves (selected according to load requirements). The roller line is installed at both ends with a certain slope, which can realize the first in, first out of the goods by the weight of the cargo.

Features/Advantages

  • The fluent strip is directly connected to the front and rear beams and the intermediate support beam
  • The beam is hung directly on the pillar
  • The slope of the fluent strip installation depends on the size and weight of the container and the depth of the sump, usually 5% to 9%
  • The fluent roller has a bearing capacity of 6kg/piece. 3-4 fluent strips can be installed in one raceway for a heavy cargo
  • A support beam is usually installed every 0.6m in the depth direction to increase the rigidity of the fluent strip
  • It can be used to separate the raceways for a long raceway
  • Brake pads need to be installed to slow down the cargo and reduce the impact
  • FIFO System

Specifications of Gravity Flow Racking

1) Item Wheel Type Flow Rack System in Yellow Color for Hardware Industry
2) Item No.: SII-DR145
3) Type: Gravity Flow Rack
4) Loading Weight:

Designed according to specific requirements
5) Material: Steel Q235B
6) Surface Finish: Powder Coating
7) Size: Custom
8) Component: Frame, Beam, Roller, Damper
9) Supply Ability: 300-400 ton per month
10) Sample Time: About 7-10 working days

Height Length Width Customize
≤2000mm ≤2000mm 3columns ≤1800mm 4columns≤2800mm Yes

Please supply bellow questions for a quick quotation:

AUTOCAD drawings(If not available, we can provide). We can design your racking system for free according to your requirements.
Size of your warehouse(Length x Width x Height)
Rack's Size, Length x Width x Depth
Pallet Size and weight .
How many bays
How many layers
Loading capacity of each layer

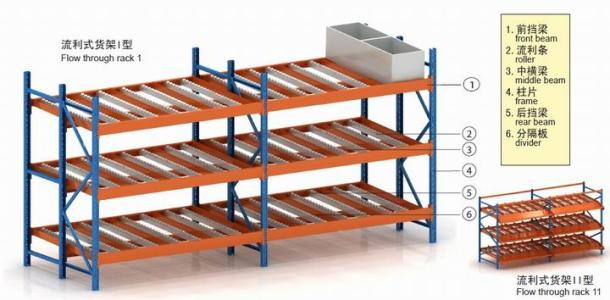

Space Saving Wheel Type Flow Rack System In Yellow Color For Hardware Industry

1.Front Beam

2. Roller

3. Middle Beam

4. Frame

5. Rear Beam

6. Divider

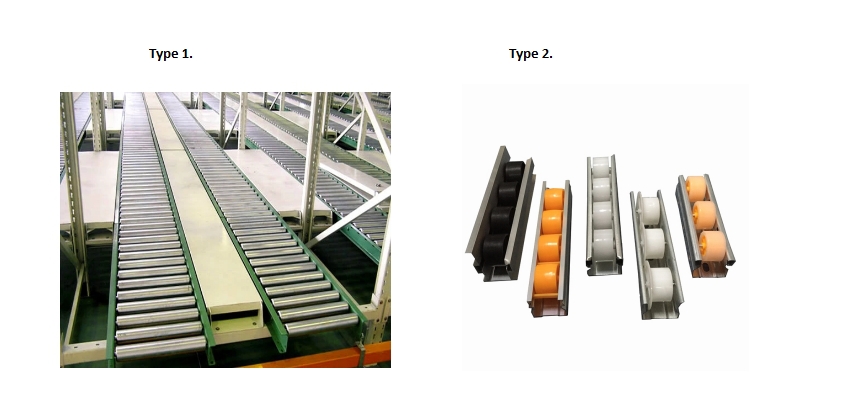

Difference Type of Wheel

Space Saving Wheel Type Flow Rack System In Yellow Color For Hardware Industry
