Double Deep Warehouse Pallet Racking Systems / Steel Pallet Shelf

Name: Double Deep Warehouse Pallet Racking Systems Steel Pallet Shelf
Brand: SIMPLY
Price: 1 USD

Double Deep Warehouse Pallet Racking Systems / Steel Pallet Shelf Manufactures

Brand Name : SIMPLY

Model Number : SII-DR325

Certification : SGS

Place of Origin : China

MOQ : 5 sets

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 6000 ton per year

Delivery Time : 30 working days

Packaging Details : Export standard carton, wooden or steel pallet is available.

Material : Steel Q235

Color : Blue upright frame, orange beam

Surface Treatment : Powder Coating

Mobility : Fixed

Usage : Tobacco, Pharmacy, Paper Industry, Food, Plastic Material Industry, etc.

Depth : Custom

Width : Custom

Logo : Custom

OEM : Yes

Extra Equipment : Upright protector, safety barrier, shims, wire decking, steel pallet, pallet bar

Contact Now

Double Deep Warehouse Pallet Racking Systems Steel Pallet Rack

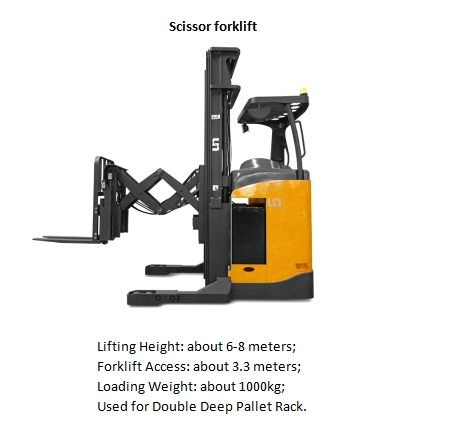

Double-deep pallet rack is constructed to store two pallets deep or four pallets deep in double entry rack .The system requires the use of a special reach truck with either dual pantograph or sliding fork attachment.

Features/Advantages

1. Beam height is a bit low , and the operating height can reach to 8 meters.

2. Medium inventory flow, providing 50% optionality.

3. Applicable to warehouses with low pick-up rate, the ground utilization rate can reach to 42%.

4. Increase the inventory compare with ordinary beam-type shelves.

5. The forklift channel needs to be around 3.3 meters.

6. Advanced access mode, it is difficult to achieve first-in, first-out.

Specifications of Double Deep Rack

1) Item	Double Deep Warehouse Pallet Racking Systems Steel Pallet Rack
2) Item No.:	SII-DR325
3) Type:	Double Deep Pallet Rack
4) Loading Weight:	≥1000KG per level, designed according to specific requirements
5) Material:	Steel Q235B
6) Surface Finish:	Powder Coating
7) Size:	Custom
8) Component:	Beam, Upright Frame, Brace
9) Supply Ability:	300-400 ton per month
10) Sample Time:	About 7-10 working days
11) Beam with Frame:	1.Frame depth normally from 800-1000mm, height is limited by handling equipment of approximate 11mm. 2. Beam length from 1000-3300mm depends on requirement or design. 3. Operation aisle is about 3.3 meters.

Double Deep Warehouse Pallet Racking Systems / Steel Pallet Shelf

Basic Components

Double Deep Warehouse Pallet Racking Systems / Steel Pallet Shelf
